KBL

CARACTÉRISTIQUES

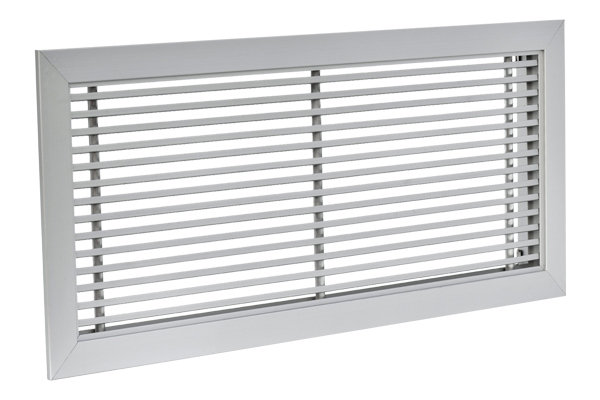

Grille à ailettes horizontales fixes au pas de 12,5 mm avec déflexion de 0° (KBL) ou 15° (KBL-L).

VERSIONS

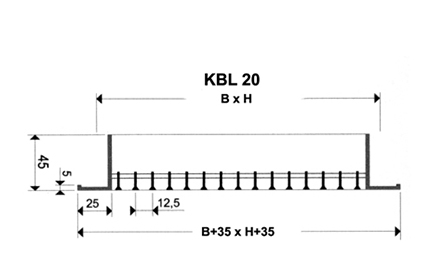

22  KBL 20 : Simple déflexion

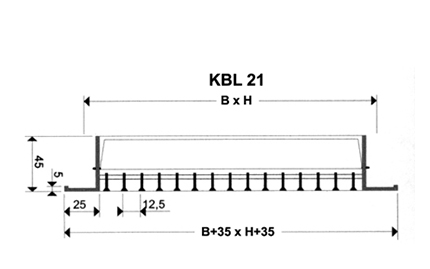

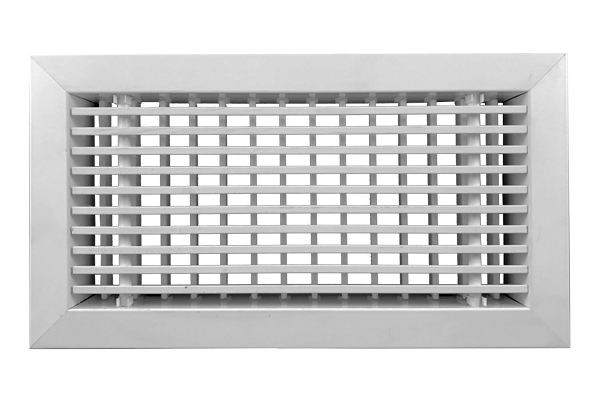

22  KBL 21 : Double déflexion (ailettes arrière verticales orientables)

MATÉRIAU DE CONSTRUCTION

Profils et ailettes aluminium finition anodisée ou peinture blanche (RAL 9016).

UTILISATION

Montage mural ou sur ventilo-convecteurs, en soufflage et reprise.

HAUTEUR D’INSTALLATION

2,5 – 3,1 m.

FIXATION

Fixation par clips en standard.
Fixation par vis frontales, aimants ou par batteuses (sur demande).

(Voir montage grilles)

ACCESSOIRES

22  Registre de régulation SC en acier galvanisé avec ailettes à mouvement opposé
22  Contre-cadre CTZ, CTB ou CTZ de montage en tôle d’acier galvanisée
22  Plénum nu ou isolé CS3–CS4



Catégories : , Étiquette :
  • KBL 20
  • KBL 21

GAMME

BxH mmKBL 20
ALU		KBL 20L
ALU		KBL 21
ALU		KBL 21L
ALU		KBL 20
RAL 9016		KBL 20L
RAL 9016		KBL 21
RAL 9016		KBL 21L
RAL 9016
400x75110004119004110104119104110404119404110504119504
500x75110005119005110105119105110405119405110505119505
600x75110006119006110106119106110406119406110506119506
800x75110008119008110108119108110408119408110508119508
1000x75110010119010110110119110110410119410110510119510
200x100110011119011110111119111110412119411110511119511
300x100110013119013110113119113110413119413110513119513
400x100110014119014110114119114110414119414110514119514
500x100110015119015110115119115110415119415110515119515
600x100110016119016110116119116110416119416110516119516
800x100110018119018110118119118110418119418110518119518
1000x100110020119020110120119120110420119420110520119520
300x150110033119033110133119133110433119433110533119533
400x150110034119034110134119134110434119434110534119534
500x150110035119035110135119135110435119435110535119535
600x150110036119036110136119136110436119436110536119536
800x150110038119038110138119138110438119438110538119538
1000x150110040119040110140119140110440119440110540119540
400x200110044119044110144119144110444119444110544119544
500x200110045119045110145119145110445119445110545119545
600x200110046119046110146119146110446119446110546119546
800x200110048119048110148119148110448119448110548119548
1000x200110050119050110150119150110450119450110550119550
400x300110054119054110154119154110454119454110554119554
500x300110055119055110155119155110455119455110555119555
600x300110056119056110156119156110456119456110556119556
800x300110058119058110158119158110458119458110558119558
1000x300110060119060110160119160110460119460110560119560

DONNÉES TECHNIQUES

MODELEAk
[m²]		Qv
[m3/h]		LWA
[dB(A)]		X0.25
[m]		Dpt
[Pa]
minmaxminmaxminmaxminmax
KBL 400x750.00838016020343.56.6520
KBL 500x750.012912024022354.28520
KBL 600x750.017616033023374.89.4520
KBL 800x750.026825050026396.111.7520
KBL 1000x750.036133068027416.913.8520
KBL 200x1000.00212040-251.93.3520
KBL 300x1000.00838016020343.56.6520
KBL 400x1000.014513027022364.38.5520
KBL 500x1000.020619039024385.310.3520
KBL 600x1000.026825050026396.111.7520
KBL 800x1000.039236073028417.314.2520
KBL 1000x1000.051547097029438.316.6520
KBL 300x1500.017616033023374.89.4520
KBL 400x1500.026825050026396.111.7520
KBL 500x1500.036133068027416.913.8520
KBL 600x1500.045342085029427.915.5520
KBL 800x1500.0638590120031449.418.6520
KBL 1000x1500.08237601540324610.721.2520
KBL 400x2000.039236073028417.314.2520
KBL 500x2000.051547097029438.316.6520
KBL 600x2000.0638590120031449.418.6520
KBL 800x2000.0885810166032461122.1520
KBL 1000x2000.113210402120344712.625.2520
KBL 400x3000.0638590120031449.418.6520
KBL 500x3000.08237601540324610.721.2520
KBL 600x3000.10089301890334711.923.7520
KBL 800x3000.13791270259035491428520
KBL 1000x3000.174916103280365015.831.8520

FT : 1102-01-A-KBL

Documents a telecharger

Téléchargez le fichierKBL – Fiche technique
