KBA

CARACTÉRISTIQUES

Grille à ailettes orientables au pas de 20mm.

VERSIONS

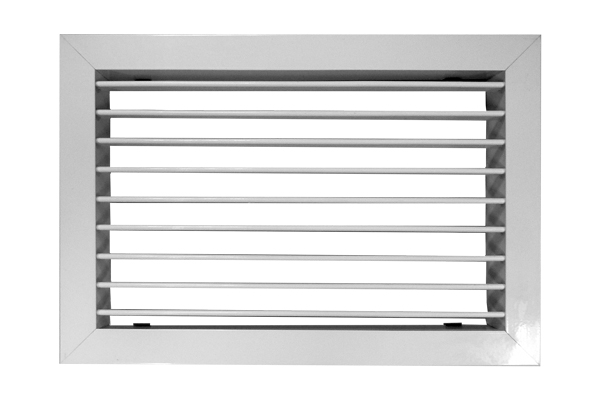

22  KBA-O : Simple déflexion

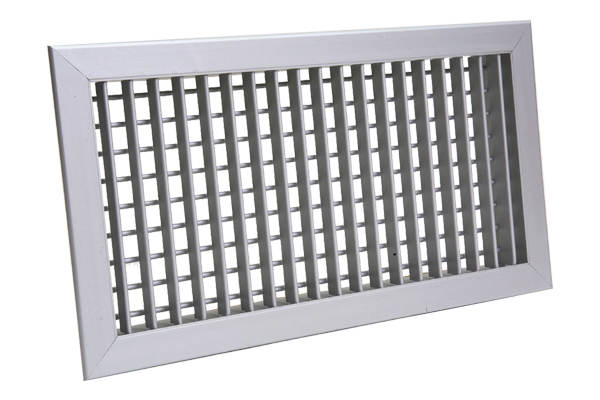

22  KBA-VO : Double déflexion

MATÉRIAU DE CONSTRUCTION

Profils et ailettes aluminium finition anodisé ou peinture blanche (RAL 9016).

UTILISATION

Montage mural en soufflage et reprise.

HAUTEUR D’INSTALLATION

2,5 – 3,5 m.

FIXATION

Fixation par clips en standard.

Fixation par vis frontales, aimants ou par batteuses (sur demande).

(Voir montage grilles)

ACCESSOIRES

22  Registre de régulation SC en acier galvanisé avec ailettes à mouvement opposé
22  Contre-cadre CT, CTB ou CTZ de montage en tôle d’acier galvanisée
22  Plénum nu ou isolé CS3CS4

RODACLIM-SELECTOR

  • KBA-O
  • KBA-VO

GAMME

BxH mmKBA-O
ALU
KBA-VO
ALU
KBA-O
RAL 9016
KBA-VO
RAL 9016
200x100111201111101111501111401
300x100111203111103111503111403
400x100111204111104111504111404
500x100111205111105111505111405
600x100111206111106111506111406
800x100111208111108111508111408
1000x100111210111110111510111410
300x150111213111113111513111413
400x150111214111114111514111414
500x150111215111115111515111415
600x150111216111116111516111416
800x150111217111117111517111417
1000x150111218111118111518111418
300x200111223111123111523111423
400x200111224111124111524111424
500x200111225111125111525111425
600x200111226111126111526111426
800x200111227111127111527111427
1000x200111228111128111528111428
400x300111234111134111534111434
500x300111235111135111535111435
600x300111236111136111536111436
800x300111237111137111537111437
1000x300111238111138111538111438
600x400111246111146111546111446
800x400111247111147111547111447
1000x400111248111148111548111448

DONNÉES TECHNIQUES

MODELEAk
[m²]
Qv
[m3/h]
LWA
[dB(A)]
X0.25
[m]
Dpt
[Pa]
minmaxminmaxminmaxminmax
KBA 200x1000.008811022022412.44.8520
KBA 300x1000.014418035025423.16520
KBA 400x1000.0224049025443.57.2520
KBA 500x1000.0256310620274548520
KBA 600x1000.031138076028464.58.9520
KBA 800x1000.0423510103029485.110.4520
KBA 1000x1000.05126201240274548520
KBA 300x1500.022828055026453.87.5520
KBA 400x1500.031138076028464.58.9520
KBA 500x1500.03954809602947510520
KBA 600x1500.0479580116030485.511520
KBA 800x1500.0646780157031506.312.8520
KBA 1000x1500.0813990197032517.214.3520
KBA 300x2000.031138076028464.58.9520
KBA 400x2000.0423510103029485.110.4520
KBA 500x2000.0534650130030495.811.6520
KBA 600x2000.0646780157031506.312.8520
KBA 800x2000.08691050210033517.414.7520
KBA 1000x2000.10921320264034528.316.5520
KBA 400x3000.0646780157031506.312.8520
KBA 500x3000.0813990197032517.214.3520
KBA 600x3000.0981190237033527.915.7520
KBA 800x3000.13151590318035539.118.1520
KBA 1000x3000.164920003990365410.220.3520
KBA 600x4000.13151590318035539.118.1520
KBA 800x4000.17621304260365510.521520
KBA 1000x4000.220626705330375611.823.5520
